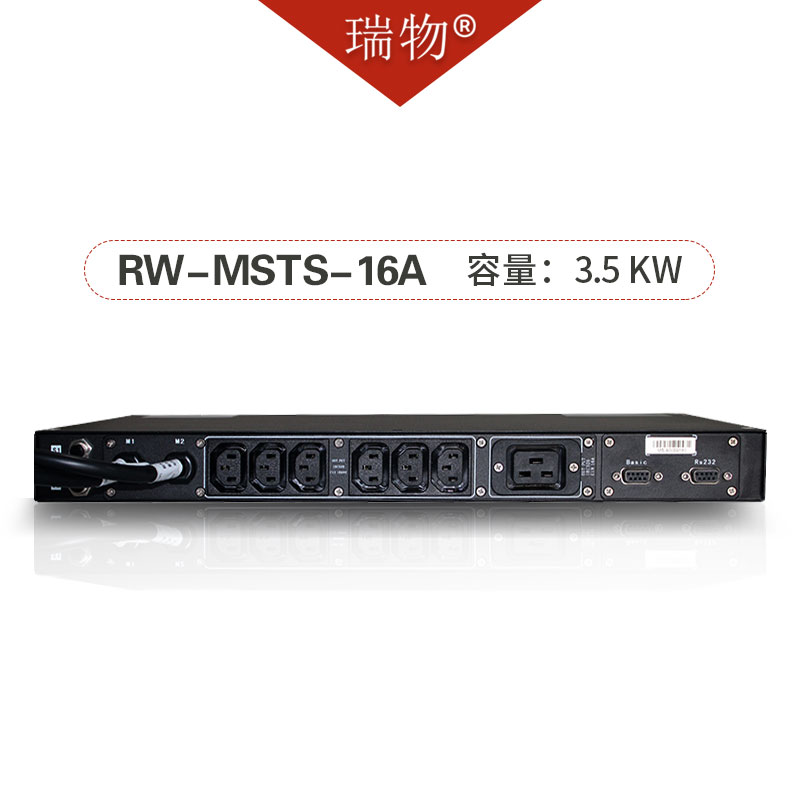

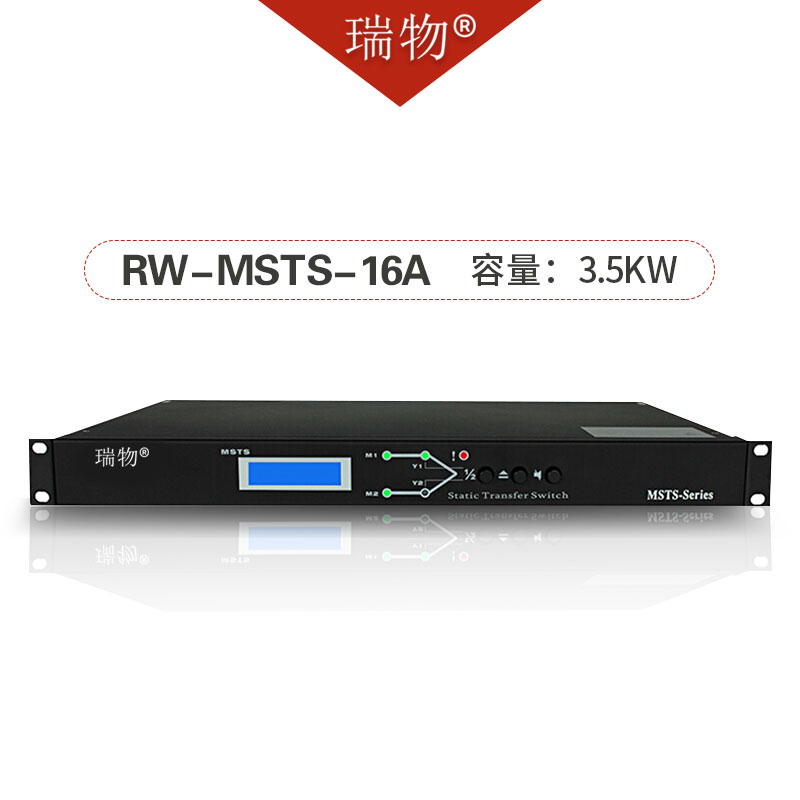

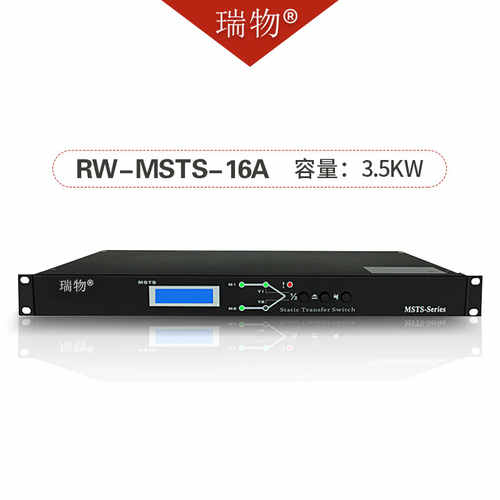

Ruiwu RW-MSTS-16A

Detailed specifications:

MSTS-16A specifications

Model	MSTS-16A
Capacity	3.2KW
Switching time	≤6ms

MSTS-16A input parameters

Input method	Two-way power supply in-phase and different phase input
Input voltage	220V–240V ±5V (wider voltage range available)
Input frequency	50HZ-60Hz

MSTS-16A output parameters

Output voltage	220V-240V±5V
Output capability	110%
Output power	≥98%

MSTS-16A warning sound

Warning sound

Two-way input undervoltage, overvoltage, power-down alarm, output overcurrent alarm

MSTS-16A protection function

Input	Over-current protection, lightning protection, under-voltage protection, over-voltage protection, power-down protection
Output	Over-current protection, anti-switching short-circuit protection

MSTS-16A communication function

Communication

RS232 serial port, dry contact signal

MSTS-16A Display Description

Display interface

LCD power parameter status display, LED status and fault display

MSTS-16A use environment

Ambient temperature	-30 °C-60 °C
Environmental humidity	0-90%
Noise	≤40db

MSTS-16A physical properties

Fuselage Dimensions	482*250*44mm (standard cabinet installation)
Weight	6KG
