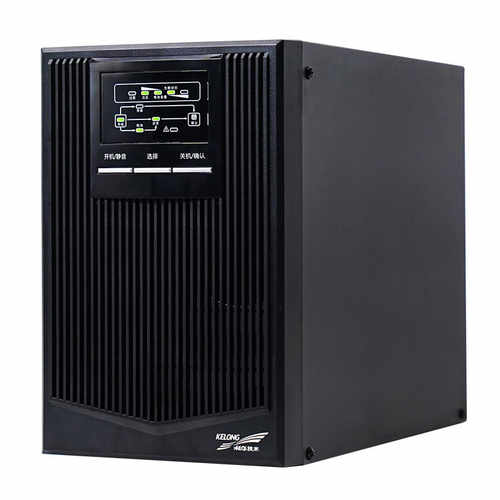

Kehua YTR1102

Kehua

Kehua YTR1102

Kehua YTR1102

Price on request
Capacity
2KVA
In / Out
Single phase input single phase output
Series
High frequency online YTR single-in single-out
Weight (kg)
17
Dimensions
145*397*220
Get a quote400-6611-323

Kehua YTR1102 detailed parameter table

rated capacity 2000VA/1600W
no. YTR1102

Kehua YTR1102 Input Properties

Battery voltage (VDC) 48
voltage range (Vac) 110~300
frequency Rate Range (Hz) 50/60±10%
phase number 1-Phase Three line
Input Power Factor ≥ 0.99 (full load)

Kehua YTR1102 Output properties

rated Power (VA) 2000
Output voltage (Vac) 200/208/220/230/240±1%
Output Rate (Hz) Utility Power Mode : and Grid Sync Battery Mode :50±0.25/60±0.3
waveform (THD) <3% (Linear Load)
switching time (ms) 0
overload capacity 105~110%:10min;110~130%:1min;>130%:3S
Output square Output Socket

Kehua YTR1102 other characteristics

overall Efficiency Rate up to 93%
DC Startup with Standby
communication function RS232 (marked with ), select with USB, SNMP, dry contact, EPO etc.
Panel Display LED
audio Noise (dB) <55
Alarm function Battery low voltage, Utility Power abnormal, UPS fault, Output overload, Output short-Circuit
protection function Battery under-voltage protection, overload protection, short-Circuit protection, over-temperature protection
working temperature (℃) 0 to 40
ambient humidity 0 ~ 90%, no condensation
size (width * depth * height)(mm) 145*397*220
weight (kg) 17
