SANTAK

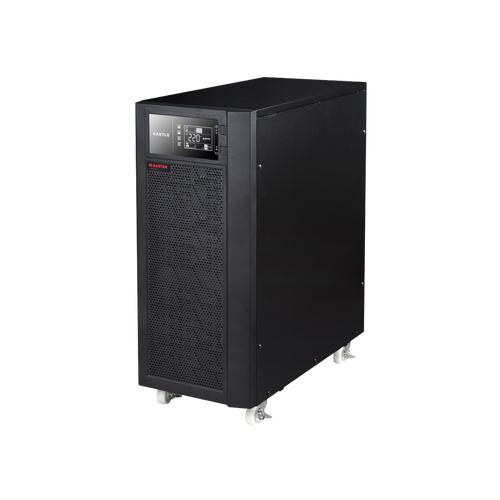

SANTAK 3C15KS

¥9,623.00

Output Power Capacity	12000W/15 KVA
rated Output Voltage	220VAC
Output Rate	and Utility Power Sync 50Hz +/- 0.5% Hz
UPS Conversion Time	0ms
Output waveform	sine wave
overload capacity	110-150 for 30 seconds Output to Bypass -Circuit, more than 150 for 300ms
Output x quantity	Terminal Block units X1

SANTAK 3C15KS Input

rated Input voltage	304 ~ 478VAC
Input Rate	40-60Hz (adjusted)
UPS Power Rate	85.0 percent
automatic restart	automatically restart when Utility Power returns to normal after Battery SHUTDWN

interface Port	Wedpower card, AS400 card
control Panel	LED
with Alarma	Alarm once in 4 seconds when Utility Power is out: Alarm once in special low Battery
UPS abnormal	changming

Battery No.	Maintenance-free Sealed Lead-acid Battery
charging time	10 h
External Battery Specifications	DC192V
Backup Time	select from 30 min to 8 h

working environment	0 - 40°C
working relative humidity	0 - 95%
Operation Height	0-3000 m
storage temperature	-5 - 45°C
storage Relative Humidity	0 - 95%
storage Height	0-15000 m
audible noise 1 m from the surface of the Standby	40.00 dBA
