Power Distribution System

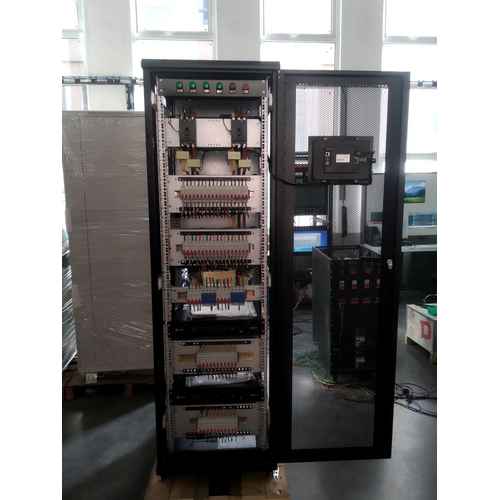

UPS AB Dual-Circuit Smart Row PDU Cabinet Delixi 63A 4P Precision 50-Circuit
UPS AB Dual-Circuit Smart Row PDU Cabinet Delixi 63A 4P 32-Circuit ; Dual-Circuit UPS Feed Dual Output (16*2), Two STS Feed (9*2), total 50-Circuit ; Top/Bottom Cable Entry and Exit , Rear Terminal
Package price¥22,685.71
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | Rack 600*2000*800 | 1 | ¥1,200.00 | |
| Ruiwu | RW-LSTS-32A | 2 | ¥3,200.00 | |
| Delixi | DZ47s C 4P 32A | 2 | ¥13.52 | |
| Delixi | CDM3S-63S/3320 63A | 2 | ¥266.00 | |
| Delixi | DZ47s C 2P 32A | 6 | ¥6.76 | |
| Delixi | DZ47s C 1P 32A | 43 | ¥3.22 | |
| Delixi | DZ47s C 1P 20A | 3 | ¥3.22 | |
| Delixi | OF3 [auxiliary contact]] | 2 | ¥16.36 | |
| Domestic high quality | AM2-40/4 | 2 | ¥138.00 | |
| Acrel | Touchscreen ATP010 | 1 | ¥1,597.50 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 2 | ¥293.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK48 | 1 | ¥587.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK24 | 1 | ¥391.00 | |
| Domestic high quality | LC 100/5 | 8 | ¥34.88 | |
| Acrel | W-9N 50A/50mA | 50 | ¥10.00 | |
| CHINT | NKY1-60-24 | 4 | ¥183.00 | |
| Domestic high quality | MD90A | 2 | ¥36.30 | |
| National standard | Copper busbar | 8 | ¥100.00 |
