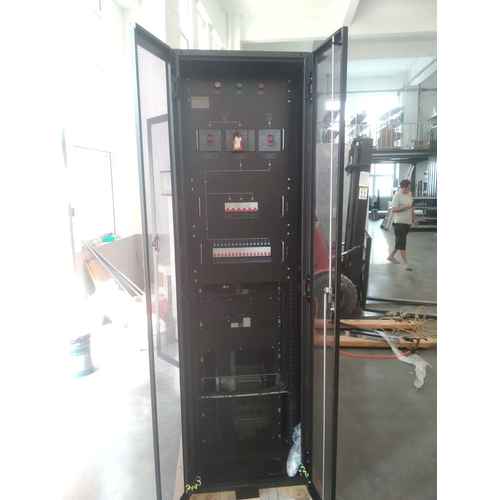

UPS Combined Input/Output Cabinet Delixi 250A 4P Precision 43-Circuit
UPS Combined Input/Output Cabinet Delixi 250A 4P Precision 43-Circuit ; UPS Output , Double-sided Mounting without Rear Terminal
Package price¥16,344.13
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | Rack W600*H2000*D1200 | 1 | ¥3,222.00 | |
| Delixi | CDM3-160S/4300B 160A | 1 | ¥270.48 | |
| Delixi | DZ47s C 4P 32A | 1 | ¥13.52 | |
| Delixi | CDM3-250S/3320 250A | 1 | ¥235.99 | |
| Delixi | CDM3-160S/3320 160A | 1 | ¥217.34 | |
| Delixi | CDM3-160S/3300 160A | 1 | ¥204.24 | |
| Delixi | DZ47s D 3P 63A | 3 | ¥12.97 | |
| Delixi | DZ47-125 2P li(D) 100A | 3 | ¥46.75 | |
| Delixi | DZ47s C 1P 32A | 35 | ¥3.22 | |
| Domestic high quality | Padlock lock setting Standby | 1 | ¥30.00 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Acrel | Touchscreen ATP007 | 1 | ¥600.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 1 | ¥293.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK48 | 1 | ¥587.00 | |
| Domestic high quality | LC 250/5 | 3 | ¥47.00 | |
| Domestic high quality | LC 200/5 | 3 | ¥42.00 | |
| Acrel | 50A/50mA | 35 | ¥15.00 | |
| Acrel | W-12N 60A/20mA | 9 | ¥20.00 | |
| National standard | Copper busbar | 1 | ¥100.00 | |
| Acrel | W-30N 200A/50mA | 3 | ¥50.00 | |
| Acrel | W-20N 100A/50mA | 3 | ¥72.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK24 | 1 | ¥391.00 |
