Power Distribution System

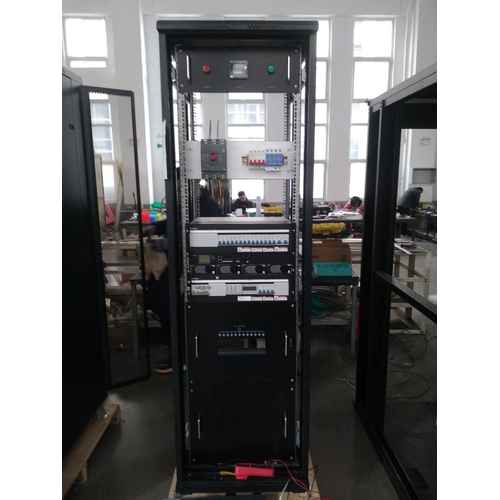

DC Switch Cabinet Delixi 250A 4P 14-Circuit
The DC switch cabinet Delixi 250A 4P has 14 Circuit. The ETP48200 input system of Huawei switching power supply is two 220V AC single-phase AC inputs
Package price¥21,852.82
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Totem | Rack W600*H2000*D600 | 1 | ¥1,560.00 | |
| Delixi | DZ47s C 4P 32A | 1 | ¥13.52 | |
| Delixi | CDM3-250S/3300 250A | 1 | ¥222.87 | |
| Delixi | CDB6iZ 1P 6kA Ii（C） 25A DC250V | 12 | ¥39.43 | |
| Huawei | ETP48200 | 1 | ¥4,980.00 | |
| Huawei | R4850G2 | 4 | ¥990.00 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Domestic high quality | 3-Phase Power Meter 72L | 1 | ¥260.00 | |
| Domestic high quality | LC 250/5 | 3 | ¥47.00 |
