Power Distribution System

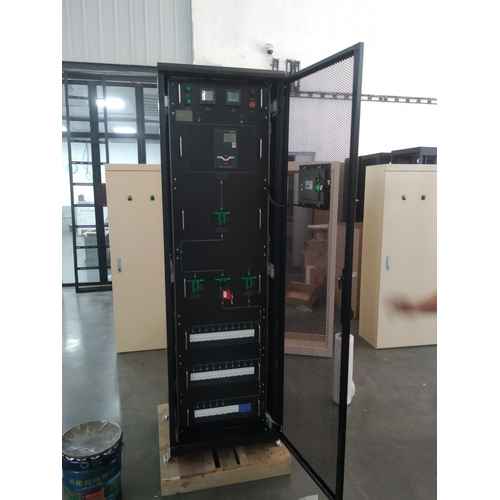

ATS Precision Distribution Cabinet Schneider 100A 4P 25-Circuit
ATS Precision Distribution Cabinet Schneider 100A 4P; Dual Source Feed , ATS Output , UPS Output , total 25-Circuit , with Padlock
Package price¥22,222.82
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Totem | Rack W600*H2000*D1000 | 1 | ¥2,000.00 | |
| Schneider Wanguo | WATSNA-100/100-4P | 1 | ¥6,000.00 | |
| Schneider Wanguo | Interphase partition/100 | 2 | ¥122.00 | |
| Schneider | NSX100F TM100D 4P3D (3P N) fixed front wiring | 1 | ¥653.63 | |
| Schneider | iC65N 4P C63A | 1 | ¥159.76 | |
| Schneider | NSX100F TM100D 3P3D (3P) fixed front wiring | 3 | ¥471.91 | |
| Schneider | iC65N 1P C32A | 25 | ¥22.34 | |
| Schneider | NS-OF/SD(100-630)(29450) | 2 | ¥96.00 | |
| Schneider | NSX-Shunt trip coil MX DC24V | 1 | ¥250.00 | |
| Schneider | NSX-Interphase Separator (NSX100-250A)1 strings 6 pieces | 4 | ¥56.49 | |
| Domestic high quality | Padlock lock setting Standby | 1 | ¥30.00 | |
| Domestic high quality | AM1-80/4 | 1 | ¥273.00 | |
| Acrel | Touchscreen ATP007 | 1 | ¥600.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 1 | ¥293.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK24 | 1 | ¥391.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK48 | 1 | ¥587.00 | |
| Domestic high quality | LC 100/5 | 6 | ¥34.88 | |
| Acrel | W-9N 50A/50mA | 25 | ¥10.00 | |
| Acrel | W-20N 100A/50mA | 3 | ¥72.00 | |
| National standard | Copper busbar | 10 | ¥100.00 |
