Power Distribution System

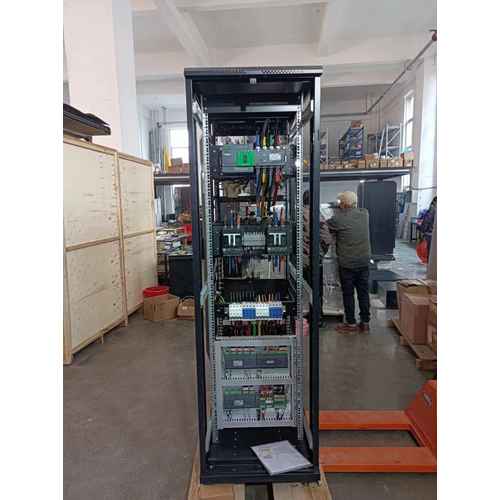

ATS Distribution Cabinet Schneider 160A 4P Precision 24-Circuit
ATS Distribution Cabinet 160A 4P Precision ; Dual Source Feed , UPS Feed , total 24-Circuit ; Double-sided Mounting , Output per Circuit all with Closing Indicator
Package price¥30,321.83
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Totem | Rack W600*H2000*D1000 | 1 | ¥2,000.00 | |
| Schneider Wanguo | WATSG-160/4AG | 1 | ¥5,595.12 | |
| Schneider | NSX160F TM160D 4P3D (3P N) fixed front wiring | 2 | ¥1,110.35 | |
| Schneider | iC65N 4P C63A | 1 | ¥159.76 | |
| Schneider | iC65N 4P C32A | 1 | ¥111.91 | |
| Schneider | NSX160F TM160DC 3P 36KA DC MCCB -Circuit Unit | 2 | ¥1,150.00 | |
| Schneider | Fix front wiring NSX160F TM125D 3P3D (3P) | 4 | ¥655.79 | |
| Schneider | iC65N 3P C63A | 3 | ¥119.95 | |
| Schneider | iC65N 1P C16A | 21 | ¥19.89 | |
| Schneider | NSX-Interphase Separator (NSX100-250A)1 strings 6 pieces | 8 | ¥56.49 | |
| Schneider | NS-OF/SD(100-630)(29450) | 3 | ¥96.00 | |
| Domestic high quality | 150A/50mA | 9 | ¥43.00 | |
| Acrel | W-12N 60A/20mA | 9 | ¥20.00 | |
| Acrel | W-9N 50A/50mA | 21 | ¥10.00 | |
| Acrel | KDYA-DG30-24K | 1 | ¥147.00 | |
| National standard | Copper busbar | 14 | ¥100.00 | |
| Domestic high quality | AM1-80/4 | 1 | ¥273.00 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Acrel | Touchscreen ATP007 | 1 | ¥600.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 2 | ¥293.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK24 | 1 | ¥391.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK48 | 1 | ¥587.00 | |
| Domestic high quality | LC 200/5 | 6 | ¥42.00 | |
| Domestic high quality | LC 150/5 | 3 | ¥25.00 |
