Power Distribution System

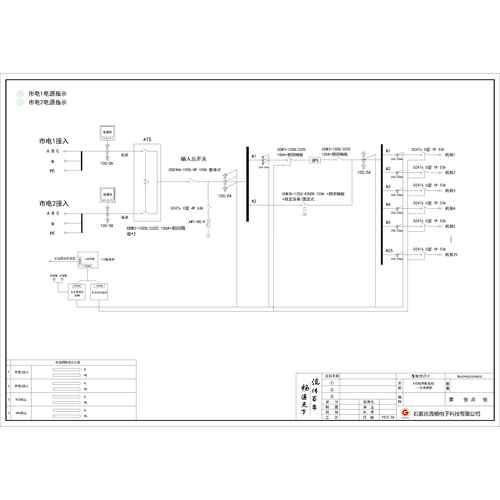

ATS Precision Distribution Cabinet Delixi 100A 4P 25-Circuit (Variant)
Precision ABB 100A 4P 25-Circuit
Package price¥16,512.33
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Totem | Rack W600*H2000*D1000 | 1 | ¥2,000.00 | |
| Delixi | CDQ3HA-100S/4P 100A whole | 1 | ¥1,444.15 | |
 | Delixi | CDM3S-125S/4300B 100A | 1 | ¥409.00 |
| Delixi | DZ47s C 4P 63A | 1 | ¥16.04 | |
| Delixi | CDM3-100S/3320 100A | 3 | ¥334.00 | |
| Delixi | DZ47s C 1P 32A | 25 | ¥3.22 | |
| Delixi | CDM3L-400 phase separator 4P(6 pieces) | 4 | ¥10.00 | |
| Domestic high quality | Padlock lock setting Standby | 1 | ¥30.00 | |
| Domestic high quality | AM1-80/4 | 1 | ¥273.00 | |
| Acrel | Touchscreen ATP010 | 1 | ¥1,597.50 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 1 | ¥293.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK24 | 1 | ¥391.00 | |
 | Acrel | Branch-Circuit Module AMC16Z-FAK48 | 1 | ¥587.00 |
| Domestic high quality | LC 100/5 | 6 | ¥34.88 | |
 | Acrel | W-9N 50A/50mA | 25 | ¥10.00 |
| Acrel | W-20N 100A/50mA | 3 | ¥72.00 | |
| National standard | Copper busbar | 10 | ¥100.00 |
