Power Distribution System

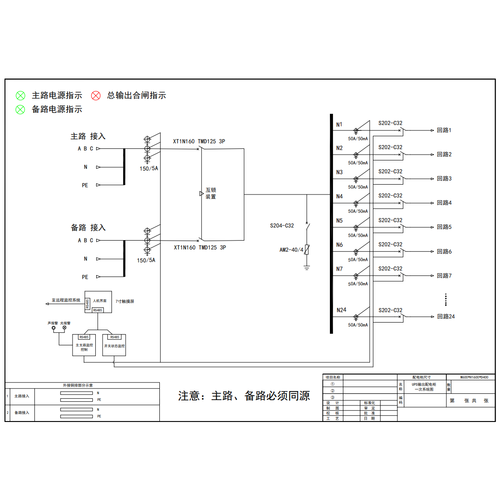

UPS Output Distribution Cabinet ABB 125A 4P Precision 24-Circuit (Variant)
UPS Output Distribution Cabinet ABB 125A 4P Precision 24-Circuit ; Main-Circuit Standby-Circuit Simultaneous Feed , with Interlock , Main-Circuit , Standby-Circuit Same Source
Package price¥14,210.86
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | XL21 Power Cabinet 600*1600*400 | 1 | ¥951.60 | |
| ABB | S204-C32 | 1 | ¥173.48 | |
| ABB | XT1N160 TMD125-1250 FF 3P | 2 | ¥801.01 | |
| ABB | S202-C32 | 24 | ¥84.24 | |
| Domestic high quality | Interlock | 1 | ¥65.00 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Domestic high quality | LC 150/5 | 6 | ¥25.00 | |
 | Acrel | W-9N 50A/50mA | 24 | ¥10.00 |
| National standard | Copper busbar | 6 | ¥100.00 | |
| Acrel | Touchscreen ATP007 | 1 | ¥600.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK24 | 1 | ¥391.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 1 | ¥293.00 |
