Power Distribution System

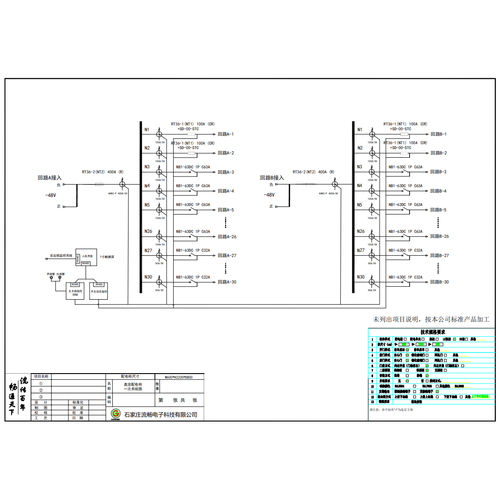

DC Distribution Cabinet CHINT 400A 1P Precision Dual-Circuit 60-Circuit (Variant)
DC Distribution Cabinet CHINT 400A 1P Precision Dual-Circuit 60-Circuit
Package price¥22,932.54
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | W600*H2200*D800 | 1 | ¥1,963.00 | |
| CHINT ELECTRICAL APPLIANCES | NB1-63DC 1P C63A DC125V 10kA(R) | 46 | ¥18.94 | |
| CHINT ELECTRICAL APPLIANCES | NB1-63DC 1P C32A DC125V 10kA(R) | 8 | ¥15.31 | |
| CHINT | RT36-1(NT1) 100A (CR) | 4 | ¥18.76 | |
| CHINT | RT36-2(NT2) 400A (R) | 2 | ¥52.39 | |
| Acrel | Touchscreen ATP007 | 1 | ¥600.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZD | 1 | ¥624.00 | |
| Acrel | AHKC-F 400A/5V | 2 | ¥124.00 | |
| Acrel | AHKC-BS-50A/5V | 8 | ¥70.00 | |
| Acrel | AHKC-BS-100A/5V | 52 | ¥70.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FDK24 | 1 | ¥921.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FDK48 | 2 | ¥1,000.00 | |
| National standard | Copper busbar | 15 | ¥100.00 | |
| Acrel | KDYA-DG50C-D | 1 | ¥300.00 |
Request a quote
Leave your details and an engineer will get back to you within one business day.
