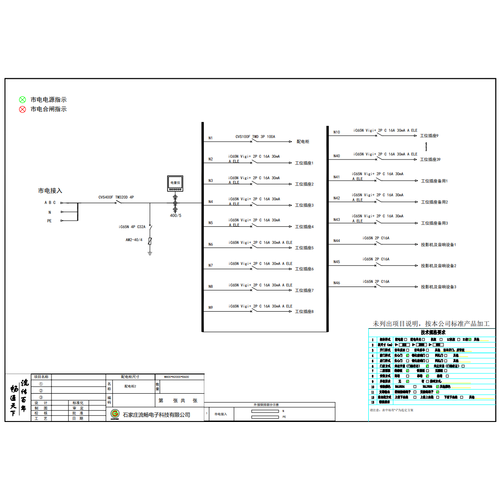

XL-21 Distribution Cabinet Schneider 320A 4P 46-Circuit (Variant)
XL-21 Distribution Cabinet Schneider 320A 4P total 46-Circuit , without Terminal Block , Second-layer Panel in Insulating Board , Wall-adjacent Mounting , Solid Front Door
Package price¥18,947.99
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | XL-21 Power Cabinet W800 * H2000 * D600 | 1 | ¥1,500.00 | |
| Schneider | CVS400F TM320D 4P3D(4P) fixed front wiring | 1 | ¥2,091.17 | |
| Schneider | iC65N 4P C32A | 1 | ¥111.91 | |
| Schneider | CVS100F TMD 3P 100A | 1 | ¥319.56 | |
| Schneider | iC65N Vigi+ 2P C 16A 30mA A ELE | 42 | ¥140.53 | |
| Schneider | iC65N 2P C16A | 3 | ¥48.73 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Acrel | 3-Phase Power Meter AMC72L-E4/KC | 1 | ¥280.00 | |
| Domestic high quality | LC 400/5 | 3 | ¥51.30 | |
| National standard | Copper busbar | 15 | ¥100.00 |
