Power Distribution System

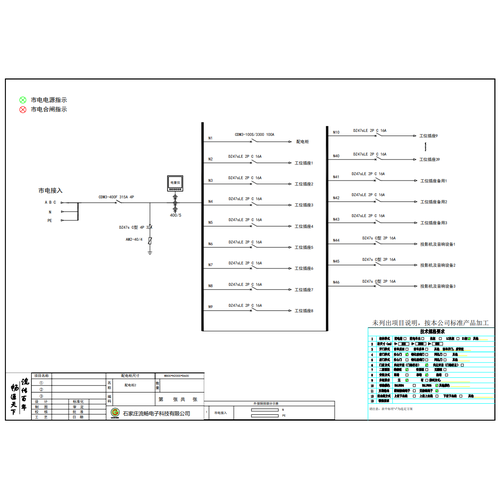

XL-21 Distribution Cabinet Delixi 315A 4P 46-Circuit (Variant)
XL-21 Distribution Cabinet Delixi 315A 4P total 46-Circuit , without Terminal Block , Second-layer Panel in Insulating Board , Wall-adjacent Mounting , Solid Front Door
Package price¥11,063.26
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | XL-21 Power Cabinet W800 * H2000 * D600 | 1 | ¥1,500.00 | |
| Delixi | CDM3-400F/4340B 315A AC230V | 1 | ¥735.09 | |
 | Delixi | DZ47s C 4P 32A | 1 | ¥13.52 |
| Delixi | CDM3-100S/3300 100A | 1 | ¥140.14 | |
| Delixi | DZ47sLE 2P C 16A | 42 | ¥35.28 | |
| Delixi | DZ47s C 2P 16A | 3 | ¥6.76 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Acrel | 3-Phase Power Meter AMC72L-E4/KC | 1 | ¥280.00 | |
| Domestic high quality | LC 400/5 | 3 | ¥51.30 | |
| National standard | Copper busbar | 15 | ¥100.00 |
