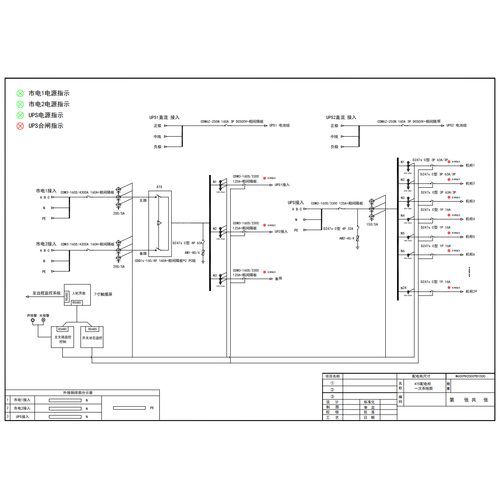

ATS Distribution Cabinet Delixi 160A 4P Precision 24-Circuit (Variant)
ATS Distribution Cabinet Delixi 160A 4P Precision 24-Circuit (Variant)
Package price¥24,366.68
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Totem | Rack W600*H2000*D1000 | 1 | ¥2,000.00 | |
| Delixi | CDQ1s-160/4P 160A | 1 | ¥1,362.24 | |
| Delixi | CDM3-160S/4300A 160A | 2 | ¥284.00 | |
| Delixi | DZ47s C 4P 63A | 1 | ¥16.04 | |
 | Delixi | DZ47s C 4P 32A | 1 | ¥13.52 |
| Delixi | CDM6Z-250N 160A 3P DC500V | 2 | ¥560.00 | |
| Delixi | CDM3-160S/3300 125A | 4 | ¥204.24 | |
| Delixi | DZ47s C 3P 63A | 3 | ¥11.74 | |
| Delixi | DZ47s C 1P 16A | 21 | ¥3.22 | |
| Domestic high quality | Interphase separator 1 strings 6 pieces | 8 | ¥50.00 | |
| Delixi | OF3 [auxiliary contact]] | 3 | ¥16.36 | |
| Domestic high quality | 150A/50mA | 9 | ¥43.00 | |
| Acrel | W-12N 60A/20mA | 9 | ¥20.00 | |
 | Acrel | W-9N 50A/50mA | 21 | ¥10.00 |
| Acrel | KDYA-DG30-24K | 1 | ¥147.00 | |
| National standard | Copper busbar | 14 | ¥100.00 | |
| Domestic high quality | AM1-80/4 | 1 | ¥273.00 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Acrel | Touchscreen ATP007 | 1 | ¥600.00 | |
| Acrel | Sub-Circuit Switch Volume AMC16Z-KA | 2 | ¥540.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK24 | 1 | ¥391.00 | |
 | Acrel | Branch-Circuit Module AMC16Z-FAK48 | 1 | ¥587.00 |
