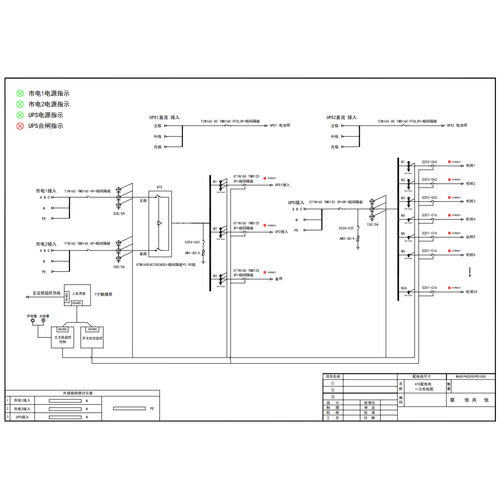

ATS Distribution Cabinet ABB 160A 4P Precision 24-Circuit (Variant)
ATS Distribution Cabinet 160A 4P Precision ; Dual Source Feed , UPS Feed , total 24-Circuit ; Double-sided Mounting , Output per Circuit all with Closing Indicator
Package price¥46,868.51
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Totem | Rack W600*H2000*D1000 | 1 | ¥2,000.00 | |
| ABB | OTM160E4C10D380C | 1 | ¥4,760.00 | |
| ABB | T1N160 TMD160/1600 FFC 4P N=100% | 2 | ¥1,541.76 | |
| ABB | S204-C63 | 1 | ¥251.73 | |
| ABB | S204-C32 | 1 | ¥173.48 | |
| ABB | T2N160 DC TMD160 FFCL 3P（10133597+10151923） | 2 | ¥1,292.21 | |
| ABB | XT1N160 TMD125-1250 FF 3P | 4 | ¥801.01 | |
| ABB | S203-C63 | 3 | ¥187.22 | |
| ABB | S201-C16 | 21 | ¥31.02 | |
| ABB | Phase partition plate 100mm 6 pieces | 8 | ¥80.00 | |
| ABB | S2C-H11R new version printing auxiliary contact | 3 | ¥67.08 | |
| Domestic high quality | 150A/50mA | 9 | ¥43.00 | |
| Acrel | W-12N 60A/20mA | 9 | ¥20.00 | |
 | Acrel | W-9N 50A/50mA | 21 | ¥10.00 |
| Acrel | KDYA-DG30-24K | 14 | ¥147.00 | |
| National standard | Copper busbar | 1 | ¥100.00 | |
| Domestic high quality | AM1-80/4 | 1 | ¥273.00 | |
| Domestic high quality | AM2-40/4 | 1 | ¥138.00 | |
| Acrel | Touchscreen ATP007 | 1 | ¥600.00 | |
| Acrel | Main -Circuit Module AMC16Z-ZA | 2 | ¥293.00 | |
| Acrel | Branch-Circuit Module AMC16Z-FAK24 | 1 | ¥391.00 | |
 | Acrel | Branch-Circuit Module AMC16Z-FAK48 | 1 | ¥587.00 |
| Domestic high quality | LC 200/5 | 6 | ¥42.00 | |
| Domestic high quality | LC 150/5 | 3 | ¥25.00 |
