Power Distribution System

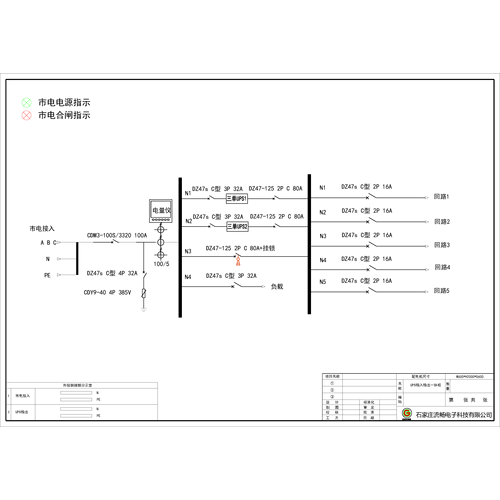

15kVA UPS Combined Input/Output Cabinet Delixi 100A 4P 5-Circuit
15kVA UPS Combined Input/Output Cabinet Delixi 100A 4P 5-Circuit UPS Redundant
Package price¥10,080.23
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | Rack 600*2000*600 | 1 | ¥1,020.00 | |
| Delixi | DZ47s C 4P 32A | 1 | ¥13.52 | |
| Delixi | CDM3-100S/3320 100A | 1 | ¥334.00 | |
| Delixi | DZ47s C 3P 32A | 3 | ¥9.95 | |
| Delixi | DZ47-125 2P li(C) 80A | 3 | ¥46.38 | |
| Delixi | DZ47s C 2P 16A | 5 | ¥6.76 | |
| Domestic high quality | Padlock lock setting Standby | 1 | ¥30.00 | |
| Delixi | CDY9-40 4P 385V | 1 | ¥445.28 | |
| Acrel | 3-Phase Power Meter AMC72L-E4/KC | 1 | ¥280.00 | |
| Domestic high quality | LC 100/5 | 3 | ¥34.88 | |
| National standard | Copper busbar | 5 | ¥100.00 |
