Power Distribution System

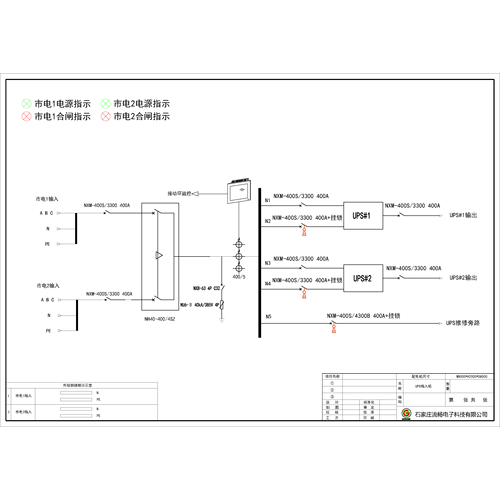

200kVA UPS Input Cabinet CHINT 400A 4P 5-Circuit Standard
UPS Redundant with Maintenance Bypass Dual Source ATS 200kVA UPS Input Cabinet CHINT 400A 4P 5-Circuit Standard
Package price¥22,268.42
Bill of materials
| Brand | Model | Qty | Price | |
|---|---|---|---|---|
| Domestic high quality | Rack 800*2000*800 | 1 | ¥1,800.00 | |
| CHINT | NH40-400/4SZ | 1 | ¥2,500.00 | |
| CHINT ELECTRICAL APPLIANCES | NXM-400S/4300B 400A | 1 | ¥747.36 | |
| CHINT ELECTRICAL APPLIANCES | NXB-63 4P C32 | 1 | ¥22.86 | |
| CHINT ELECTRICAL APPLIANCES | NXM-400S/3300 400A | 8 | ¥522.72 | |
| Domestic high quality | Padlock lock setting Standby | 3 | ¥30.00 | |
| CHINT | NU6-Ⅱ 40kA/385V 4P | 1 | ¥142.54 | |
| Acrel | 3-Phase Power Meter AMC72L-E4/KC | 1 | ¥280.00 | |
| Domestic high quality | LC 400/5 | 3 | ¥51.30 | |
| National standard | Copper busbar | 30 | ¥100.00 |
