Santak

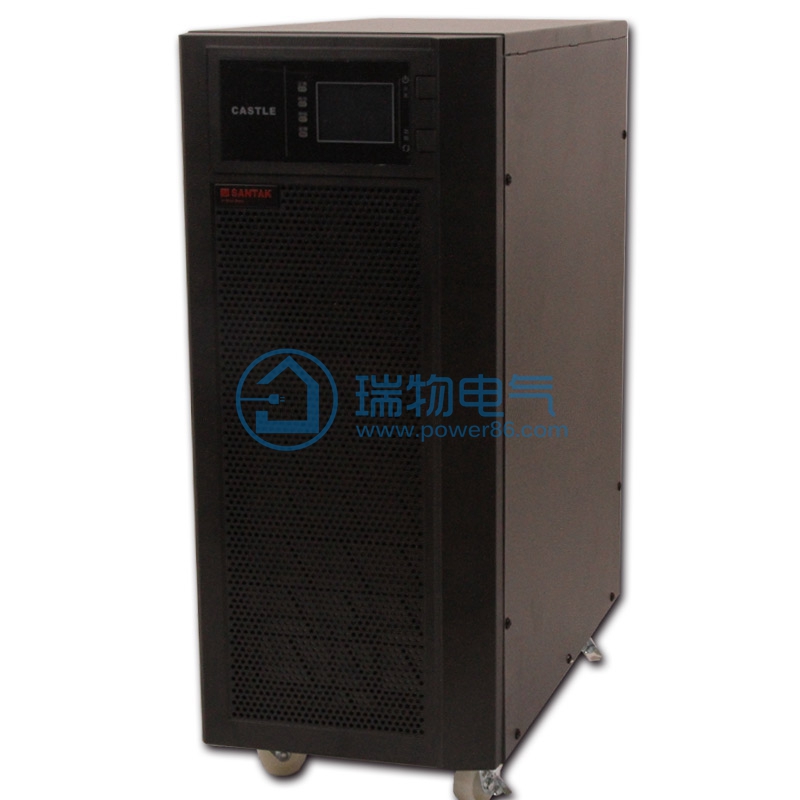

Santak C10K

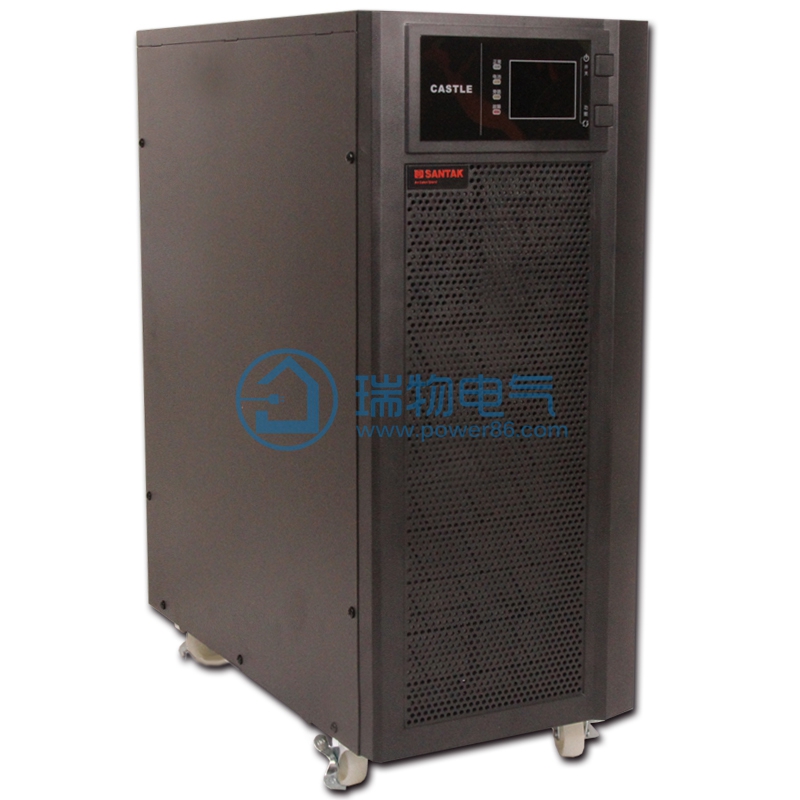

Name: Santak C10K
Brand: Santak
SKU: 47
Price: 9600 CNY
Availability: InStock

VAT invoice can be issued for postage in most areas of the 10K standard machine

¥9,600.00List price ¥10148.00

Ratings

View on mobile

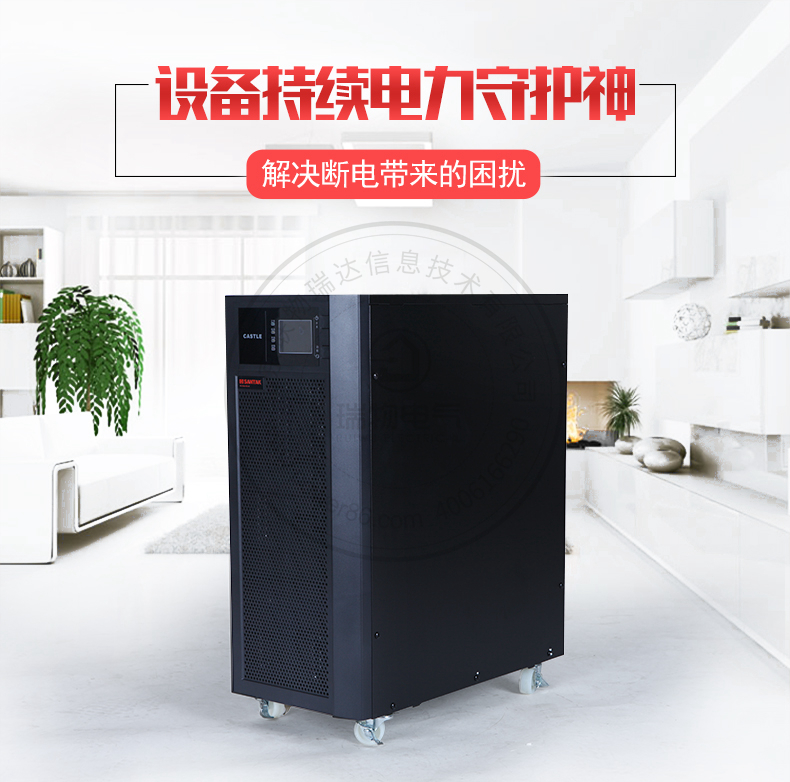

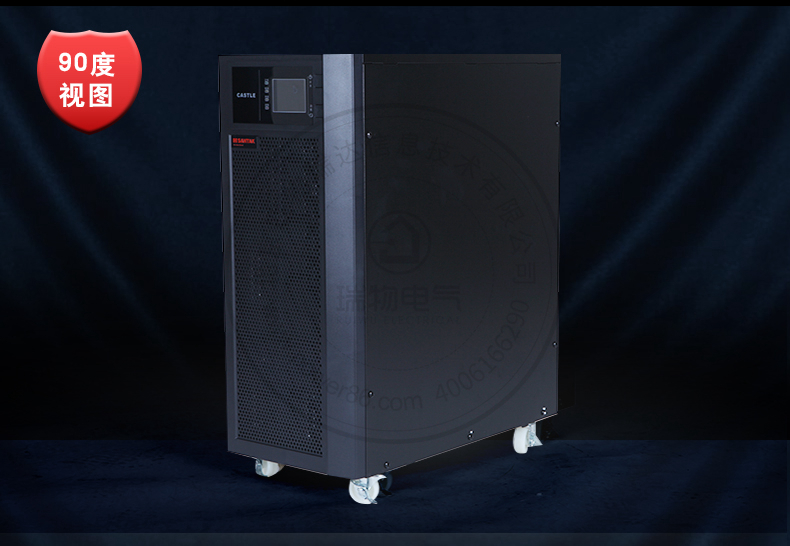

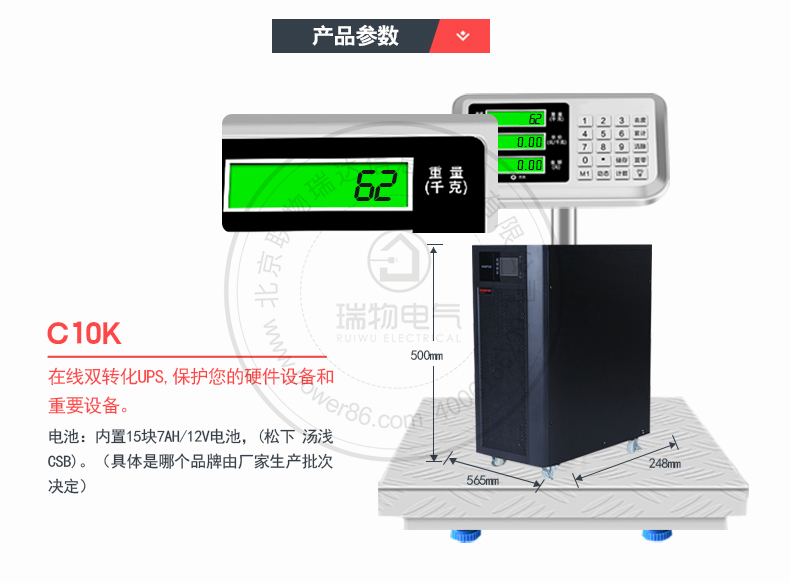

Product introduction https://img.rwyun.com/power86/rs1/ups/10/2328/47/47_c0.jpg

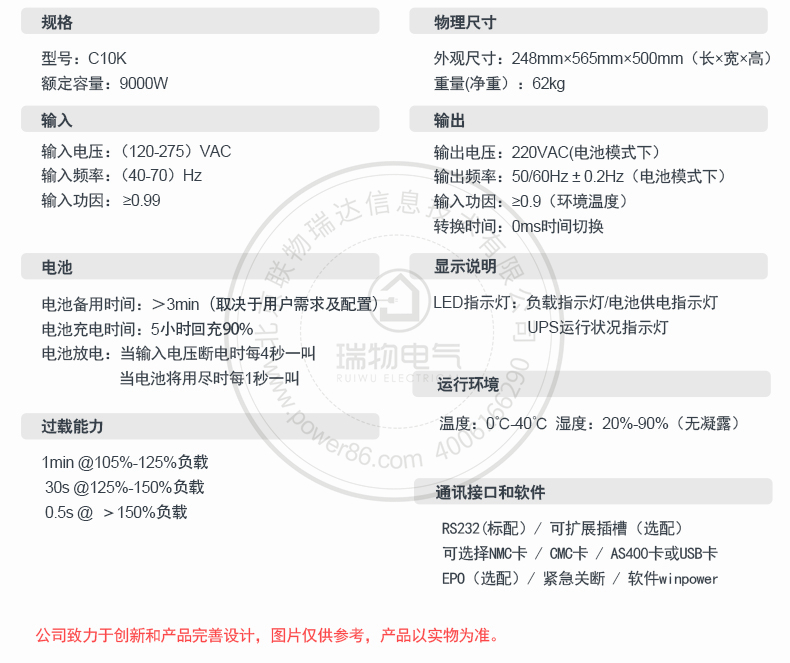

Detailed specifications:

Output power Capacity	9000W/10 KVA
Rated output voltage	220VAC
Output frequency	Synchronization with mains 50 Hz +/- 0.5% Hz
UPS Transfer time	0ms
Output waveform	Sine wave
Overload capacity	At 110%–150%, the output remains in bypass mode for 30 seconds; above 150%, it stays in bypass for 300 ms.
Output form x quantity	Terminal block X1

Santak C10K Input

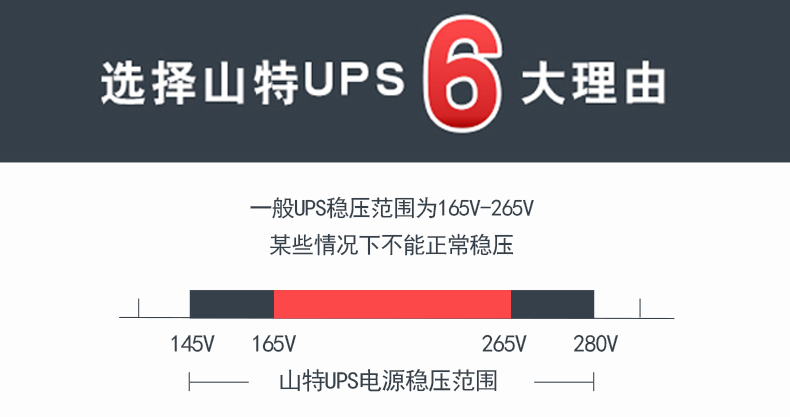

Rated input voltage	176~276 VAC
Input frequency	40–60Hz (adjustable)
UPS power supply Efficiency	85.0%
Automatic restart	After the battery is SHUTDWN, when the mains power returns to normal, it can automatically restart

Interface Port	Wedpower card, AS400 card

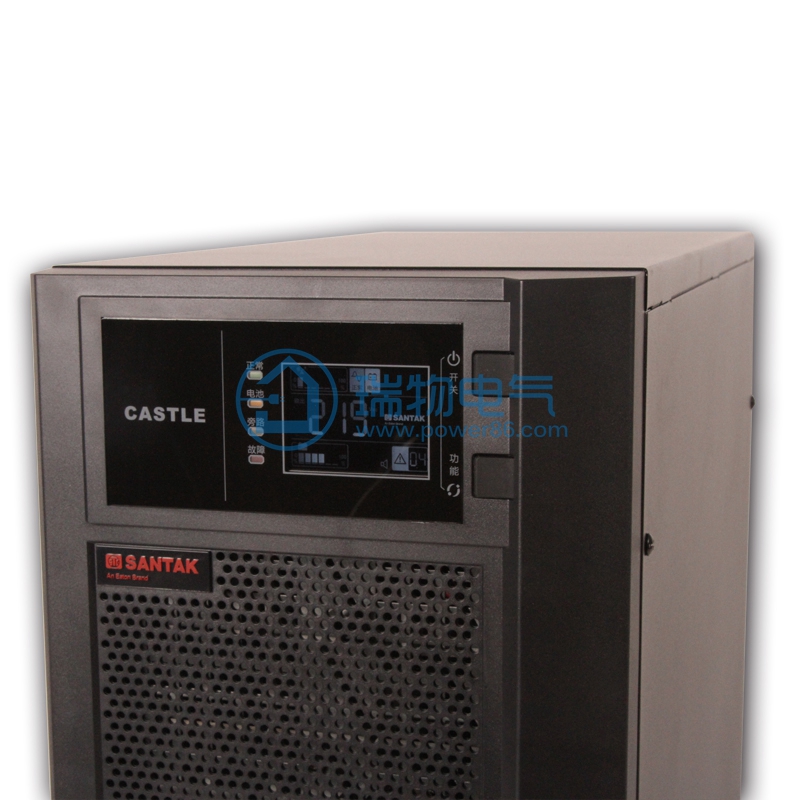

Control Panel	LED
audible alarm	Mains power outage alarm once 4 seconds: special low battery alarm once per second
UPS abnormal	continuous beep

Battery Model	Maintenance-free sealed lead-acid battery
Typical charging time	10 hours
External battery specifications	DC192V

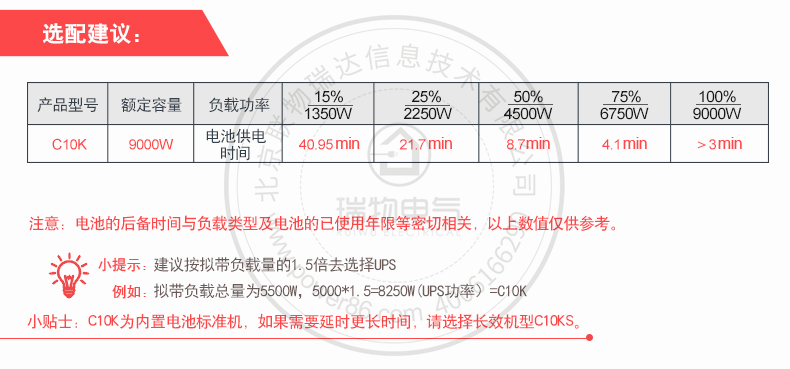

Backup time	13 minutes (half load)

Operating environment	0 - 40 °C
Operating relative humidity	0 - 95%
Operating height	0-3000 m
Storage temperature	-5 - 45 °C
Storage Relative Humidity	0 - 95%
Storage height	0-15000 m
Audible noise 1 m from equipment surface	40.00 dBA

Standard warranty	Maintenance within 3 years
Compliance with environmental requirements	RoHS,REACH: does not contain SVHC

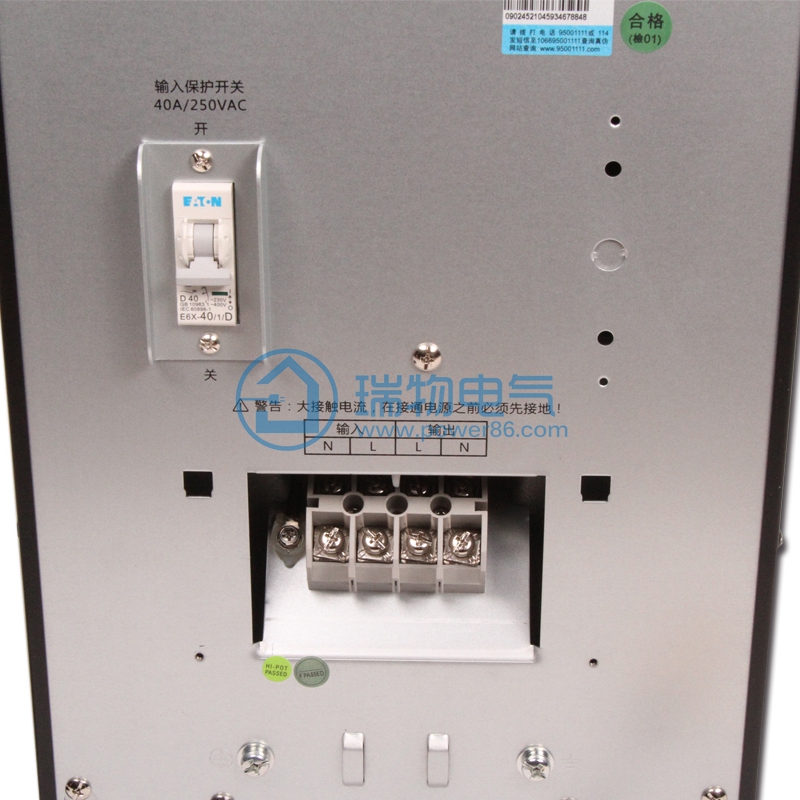

10KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	6mm²
Input neutral conductor size	6mm²
Input earth conductor size	6mm²
Input breaker	40A -2P
Output parameter
Output voltage	220V AC
Output conductor size	6mm²
Output neutral conductor size	6mm²
Output earth conductor size	6mm²
Output breaker	40A -2P
Battery specifications
External battery breaker	100A-2P
External battery cable size	10mm²

10KVA input AC 380V: output AC 220V

Input parameter
Input voltage	220V AC
Input live conductor size	6mm²
Input neutral conductor size	6mm²
Input earth conductor size	6mm²
Input breaker	40A -2P
Output parameter
Output voltage	220V AC
Output conductor size	6mm²
Output neutral conductor size	6mm²
Output earth conductor size	6mm²
Output breaker	40A -2P
Battery specifications
External battery breaker	100A-2P
External battery cable size	10mm²

10KVA input AC 380V: output AC 380V

Input parameter
Input voltage	220V AC
Input live conductor size	6mm²
Input neutral conductor size	6mm²
Input earth conductor size	6mm²
Input breaker	40A -2P
Output parameter
Output voltage	220V AC
Output conductor size	6mm²
Output neutral conductor size	6mm²
Output earth conductor size	6mm²
Output breaker	40A -3P
Battery specifications
External battery breaker	100A-3P
External battery cable size	10mm²
