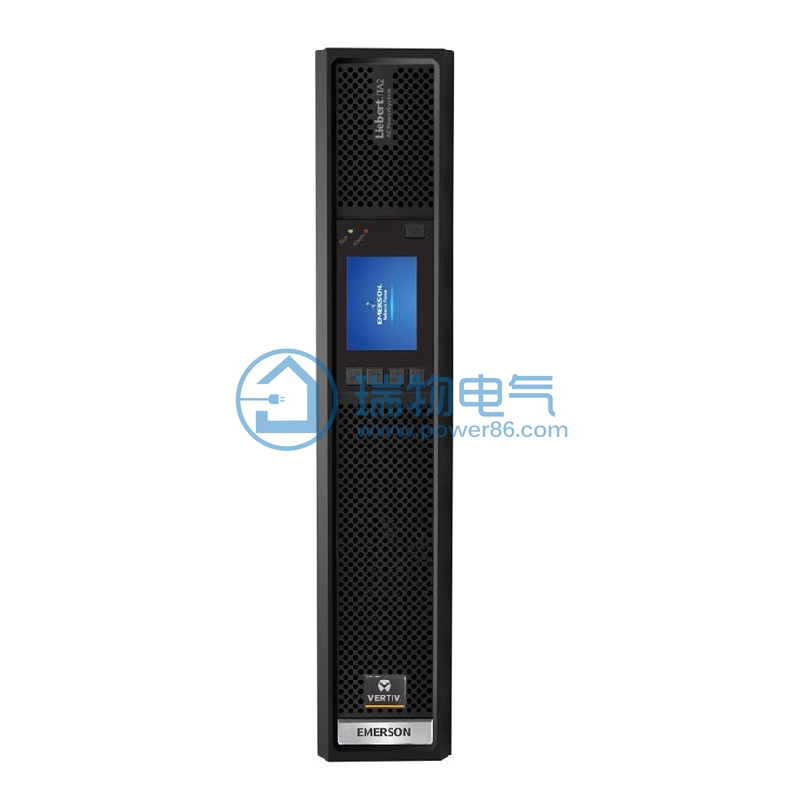

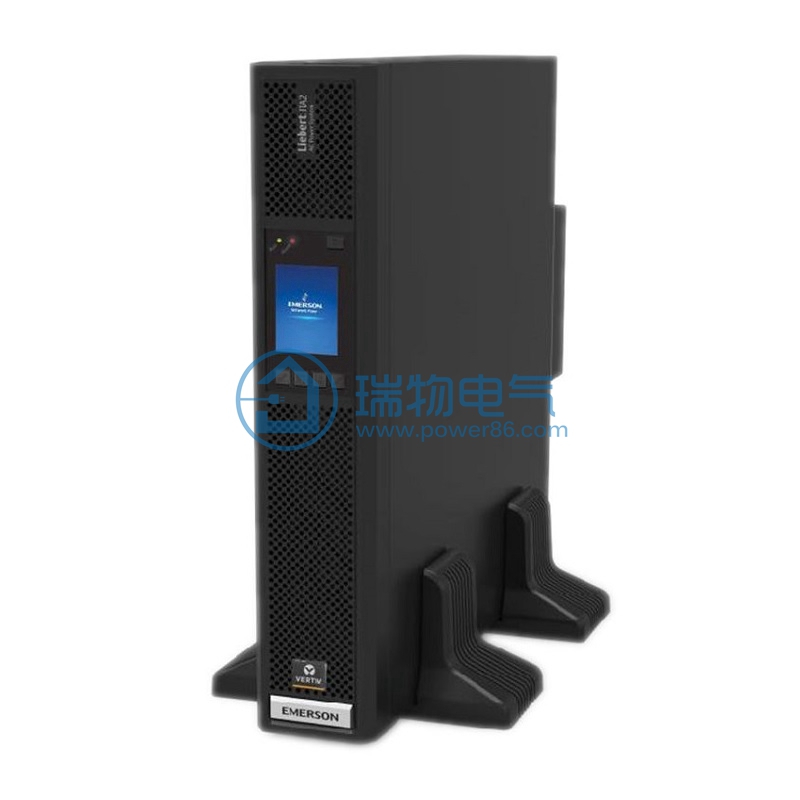

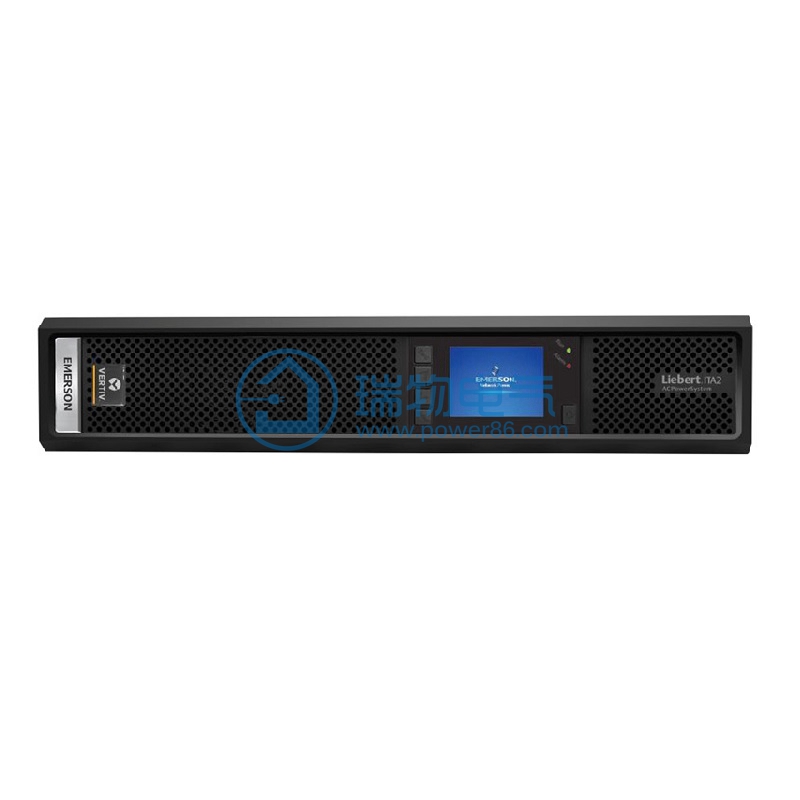

Emerson ITA-06k00AE1102C00

Single-in, single-out online high-frequency machine 6K standard machine can issue VAT invoices by postage in most areas.

¥7,751.70List price ¥24300.00

Ratings

View on mobile

Series Introduction

Detailed specifications:

Capacity	6KVA
Model	Emerson ITA-06k00AE1102C00

input and output system	Single inlet and single outlet
Main Side Grid Adaptability	Main paracanthan homologous
Input voltage range	100~288Vac
Input frequency range	40Hz~70Hz
Input current harmonic content	＜5%
Input power factor	0.99

Rated power	6KW
Rated voltage	220/230/240 Vac
output power factor	1
Output voltage stability	1%
Output frequency stability	±0.1Hz
Output voltage waveform distortion rate	Resistive load: 2%; Rectifying load: 4%
Maximum load crest factor	3:1
Dynamic Voltage Transient Range	5%
Voltage transient recovery time	60ms
Overload capacity (% rated load)	105~125 loading, 5min;125~150 loading, 1min;>150 loading, 200ms

Compatible battery types (external)	lead acid, lithium, nickel cadmium
Charger	2A
Number of battery cells	12/16/20 sections can be set, default 16 sections

Mounting	Tower, Rack Compatible
Overall efficiency	Up to 95.5%
Number of parallel machines	Maximum 4 units
Switching time (main road to battery)	0ms
Switching time (inverter to bypass)	0ms
Noise	55dB
IP rating	IP20

Volume (mm)	43085400
Weight	11KG

Communication Interface Type	Built-in network port, USB, RS232, RJ45, dry contact, REPO, communication card box, parallel port
Battery temperature sensing	Optional
LCD screen	2.8inch color screen, gravity adaptive, boot guide

Operating temperature	0~50 degrees, 50 degrees output power derating to 70%
Humidity	0~95%
Maximum altitude	3000m without derating
Certification, testing	CE, Energy Star, Theil, energy saving certification, earthquake resistance, shipping; Rohs,Reach; wet dust test, fire test, limit test, high altitude test, vehicle test

Standard warranty

Repair or replacement within 3 years

6KVA AC 220V input: AC 220V output

Input parameter
Input voltage	220V AC
Input live conductor size	4mm²
Input neutral conductor size	4mm²
Input earth conductor size	4mm²
Input breaker	32A -2P
Output parameter
Output voltage	220V AC
Output conductor size	4mm²
Output neutral conductor size	4mm²
Output earth conductor size	4mm²
Output breaker	32A -2P
Battery specifications
External battery breaker	75A-2P
External battery cable size	6mm²
