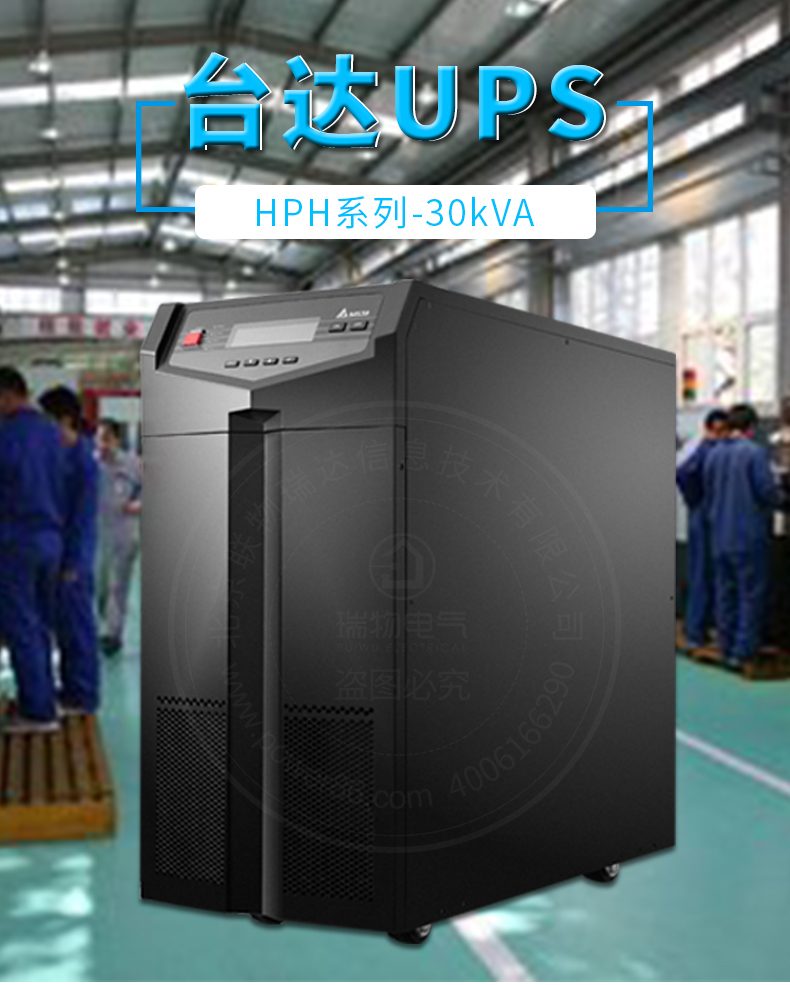

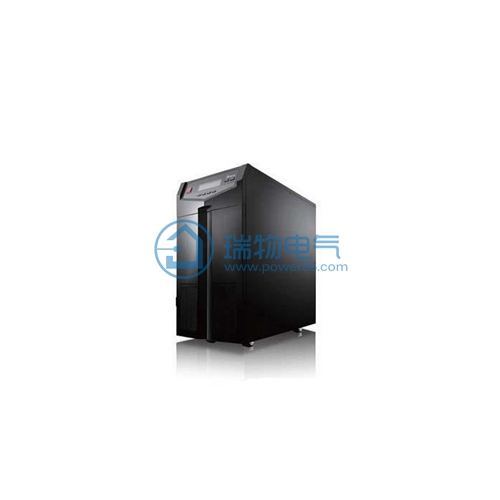

Delta GES-HPH-30K

Three-in-three-out 30K online high-frequency pilot can issue VAT invoices by postage in most areas.

¥39,192.00List price ¥106500.00

Rated power: 30KW (kW)
Rated capacity: 30KVA (KVA)
Input / output: Three in and three out (380V:380V)
External battery voltage: (long machine) 240V (DC)
Blocks per string: 20 yuan
Net weight: 86.50kg (kg)
Gross weight: 95.15kg (kg)

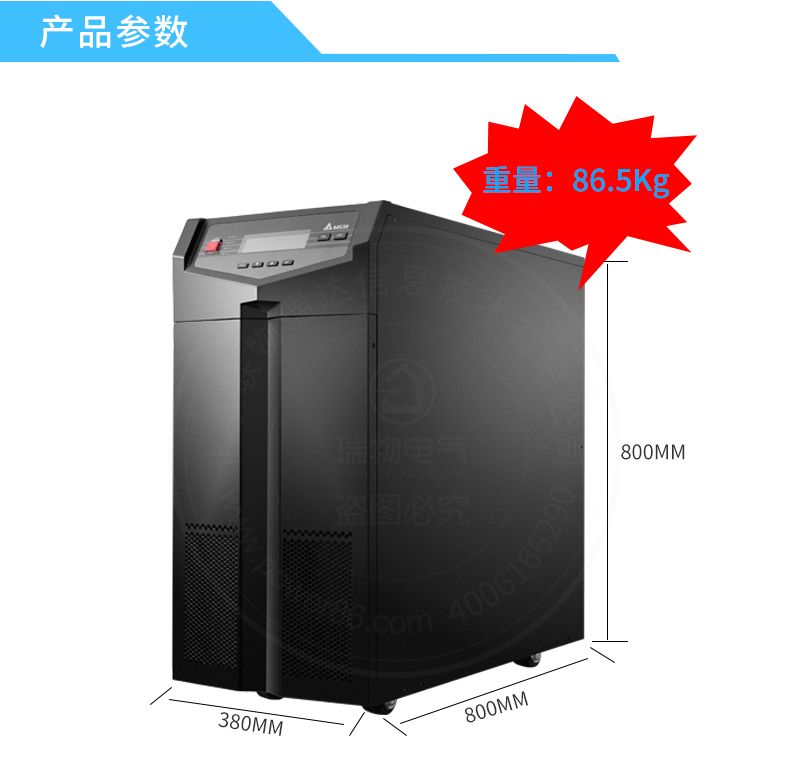

Dimensions (L×W×H): 380*800*800mm (mm) U

Ratings

20KVA 30KVA 40KVA 60KVA 80KVA 100KVA 120KVA

UPS runtime configurations

30 minutes 1 hour 2 hours 4 hours 8 hours

View on mobile

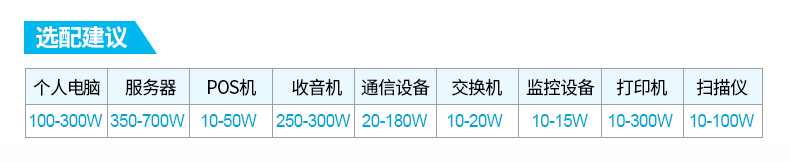

Product introduction https://img.rwyun.com/power86/rs1/ups/285/434/1567/1567_c0.jpg

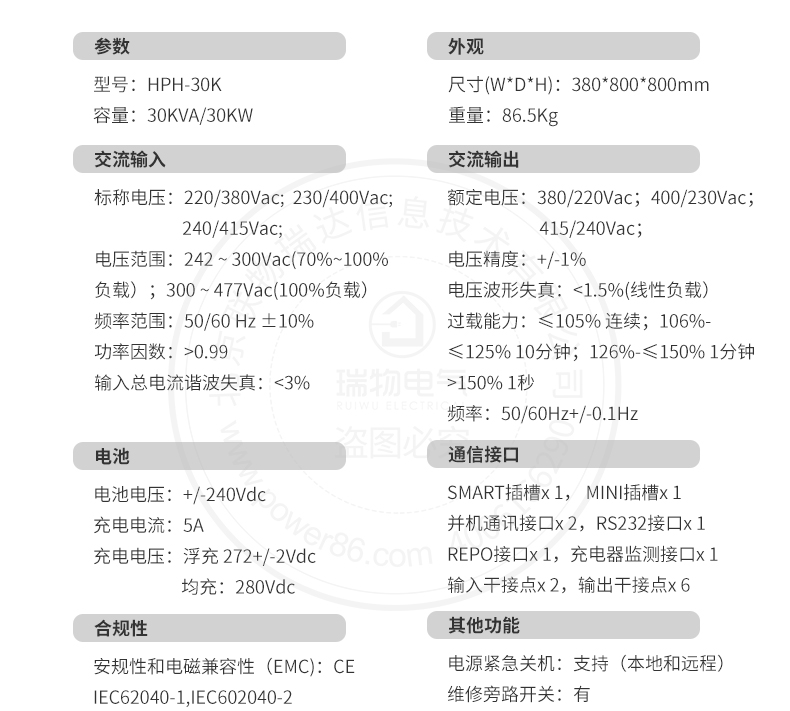

Detailed specifications:

Delta GES-HPH-30K specifications

Rated power

30KVA/30KW

Delta GES-HPH-30K input parameters

Nominal voltage	380/220 Vac；400/230 Vac；415/240 Vac
Voltage range	242 ~ 300Vac(70% ~ 100 load);300~477 Vac(100 load)
Frequency	50/60Hz±10%

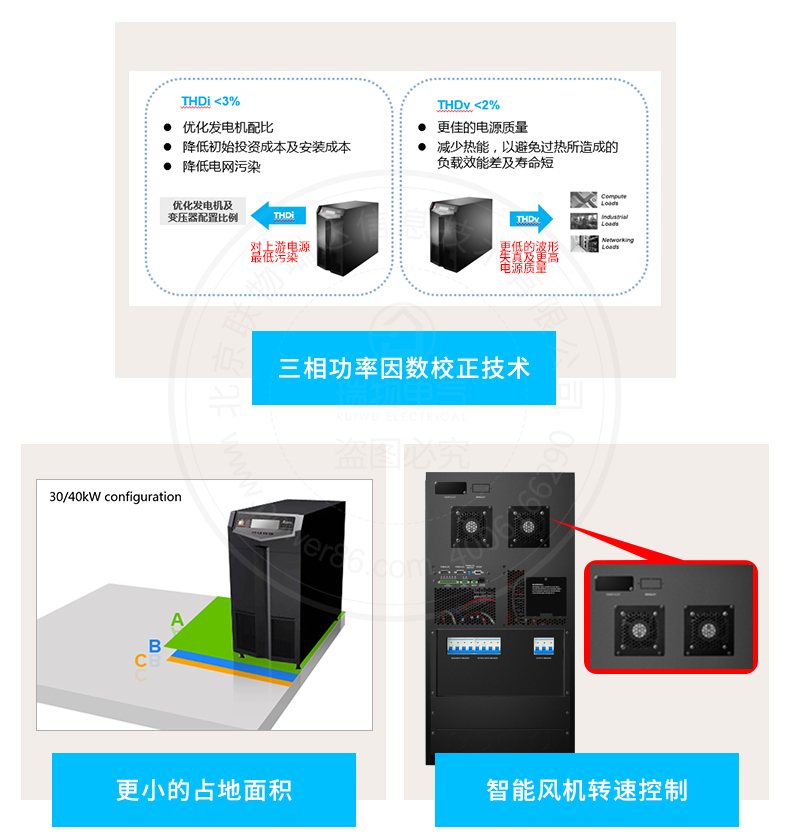

Power factor	＞0.99
Input Total Current Harmonic Distortion	＜3%

Delta GES-HPH-30K output parameters

Voltage	380/220 Vac；400/230 Vac；415/240 Vac
Voltage accuracy	+/-1%
voltage waveform distortion	<1.5%(linear load)
Frequency	50/60 Hz +/-0.1Hz
Overload capacity	≤105%: Continuous; 106%–≤125%: 10 minutes; 126%–≤150%: 1 minute; >150%: 1 second

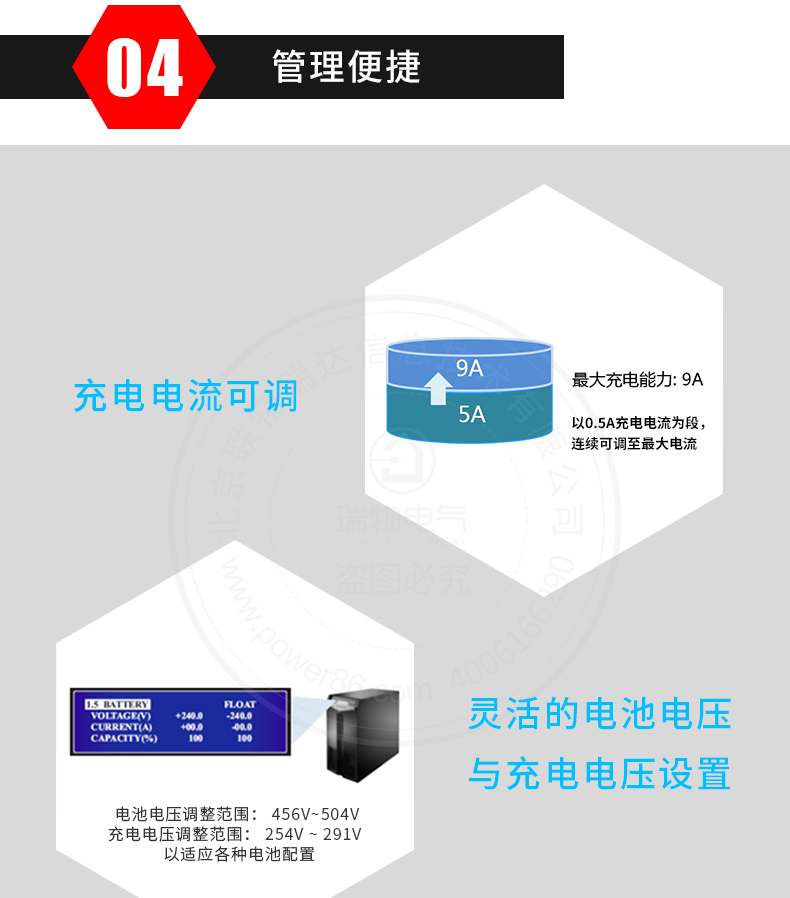

Delta GES-HPH-30K Battery and Running Time

Rated battery voltage	+/-240Vdc
Charging current	5A
Charging voltage	Float 272 /-2 Vdc, fast charge 280Vdc

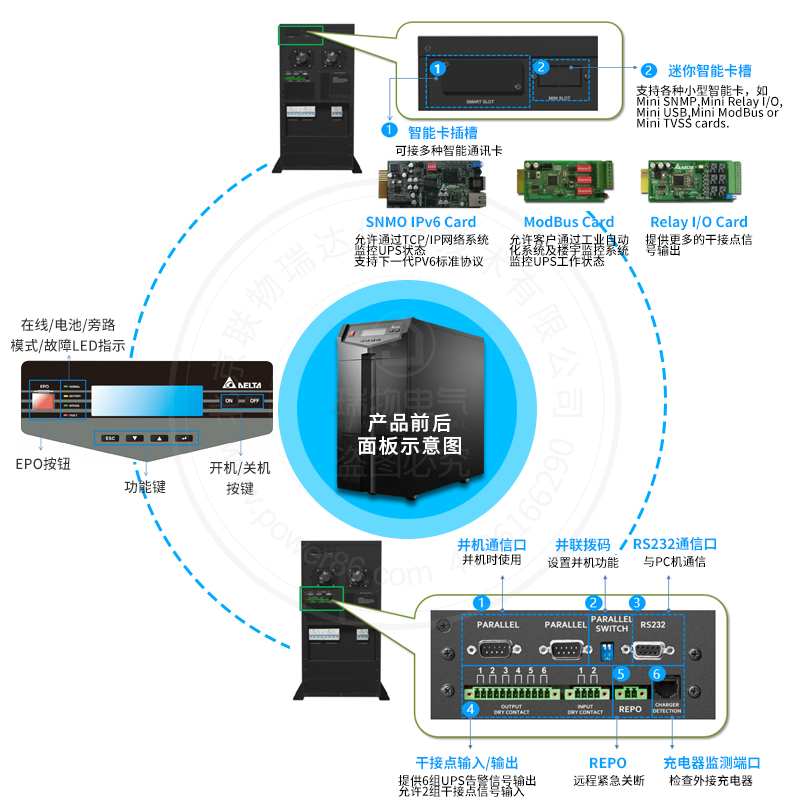

Delta GES-HPH-30K communication interface

Interface

1 SMART slot, 1 MINI slot, 2 parallel communication ports, 1 RS232 port, 1 REPO port, 1 charger monitoring port, 2 input dry contacts, 6 output dry contacts

Delta GES-HPH-30K Compliance

Safety and electromagnetic compatibility

CE,IEC62040-1;IEC602040-2

Other functions of Delta GES-HPH-30K

Emergency Shutdown	Support (local and remote)

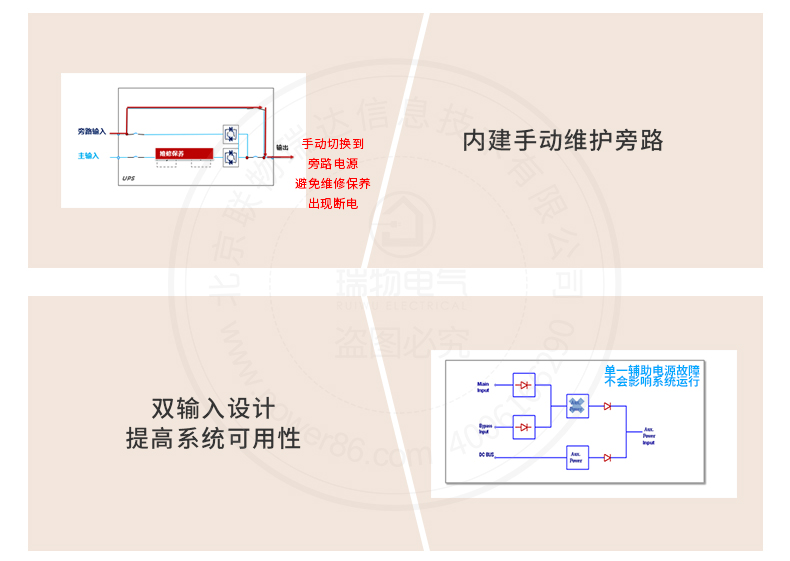

Maintenance Bypass Switch	have

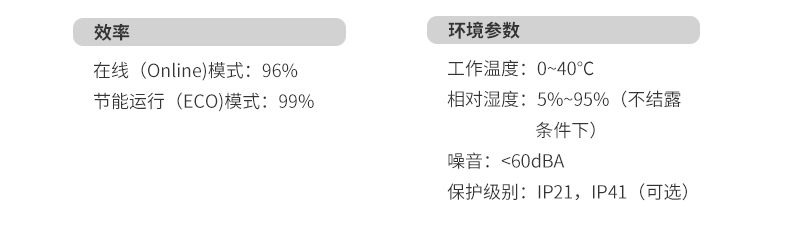

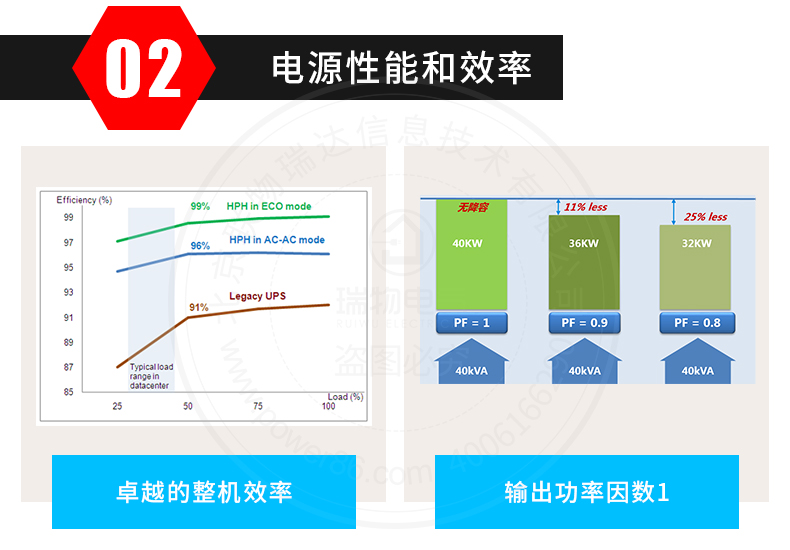

Delta GES-HPH-30K Efficiency

Online mode	Up to 96%
ECO energy-saving operation economic mode	Up to 99%

Delta GES-HPH-30K Environment

Operating environment	0 - 40 °C
Operating relative humidity	5- 95% (non-condensing)
Audible noise 1 m from equipment surface	＜60dBA
Protection level	IP21,IP41 (optional)

Delta GES-HPH-30K physical indicators

Dimensions （WDH）	380800800mm
Net weight	66.5KG

30KVA input AC 380V: output AC 380V

Input parameter
Input voltage	380V AC
Input live conductor size	10mm²
Input neutral conductor size	16mm²
Input earth conductor size	16mm²
Input breaker	63A -3P
Output parameter
Output voltage	380V AC
Output conductor size	10mm²
Output neutral conductor size	16mm²
Output earth conductor size	16mm²
Output breaker	63A-3P
Battery specifications
External battery breaker	150A-3P
External battery cable size	10mm²
