APC

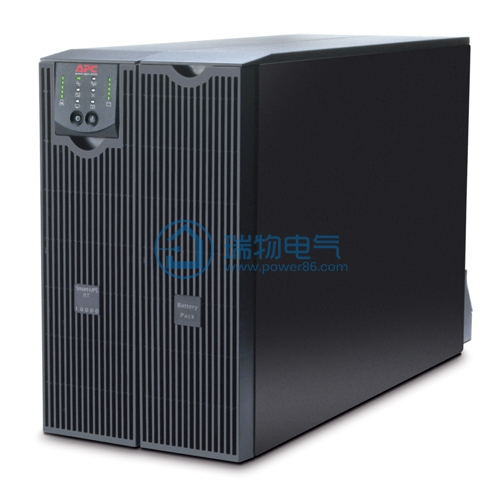

APC SURT10000UXICH
Single-in and single-out 10K online high-frequency tower long machine can issue VAT invoices by postage in most areas.
- Model
- APC SURT10000UXICH
- Capacity / Power
- 10KVA / 8KW
- Dimensions mm
- 432*263*723
¥22,041.36View details
APC
APC SURT10000XLICH
Single-in and single-out 10K online high-frequency machine standard machine built-in battery can be invoiced by postage in most areas.
¥23,980.26
- Rated power
- 8KW (kW)
- Rated capacity
- 10KVA (KVA)
- Input / output
- Single in and single out (220V:220V)
- Built-in battery voltage
- (standard machine) built-in battery 384V (DC)
- Net weight
- 110.91kg (kg)
- Gross weight
- 122.00kg (kg)
- Dimensions (L×W×H)
- 432*263*723mm (mm) U
Ratings
View on mobileDetailed specifications:
APC SURT10000XLI output
| Output power Capacity | 8000 wattage/10 kVA | ||||
| Maximum Configurable Power | 8000 wattage/10 kVA | ||||
| Rated output voltage | 230V | ||||
| Adjustable range of output voltage | Can be set to 220, 230 or 240 output voltage | ||||
| Full load efficiency | 92.0% | ||||
| Output voltage distortion | Less than 3% | ||||
| Output frequency (synchronized with main frequency) | 50/60Hz /- 3 Hz user adjustable/- 0.1 | ||||
| Other output voltages | 220,240 | ||||
| crest factor | 3 : 1 | ||||
| Topology | double conversion online | ||||
| Waveform Type | Sine wave | ||||
| Output Connections |
|
||||
| Bypass | Internal bypass (automatic manual) |
APC SURT10000XLI Input
| Rated input voltage | 230V | ||
| Input frequency | 50/60Hz /- 5 Hz (automatic adaptation) | ||
| Input terminal type |
|
||
| Operating voltage range | 160 - 280V | ||
| Adjustable Input Voltage Range | 100 - 280V | ||
| Other input voltages | 220,240 |
APC SURT10000XLI Communications and Management
| Interface Port | DB-9 RS-232,RJ-45 10/100 Ethernet interface, smart slot |
| Pre-installed SmartSlot™card | APC9631CH |
| Control Panel | LED status display with load and battery bar graph and "online", "battery on", "replace battery", "overload" and "bypass" indicators. |
| Emergency Shutdown | Yes |
| audible alarm | Alarm when mains power failure: special low battery alarm overload continuous tone alarm |
APC SURT10000XLI Battery and Runtime
| Battery Model | Maintenance-free sealed lead-acid battery (suspended electrolyte): leak-proof | ||||||||||||
| Pre-installed battery | 4 | ||||||||||||
| Typical charging time | 2.20 hours | ||||||||||||
| Replaceable battery pack | RBC44 | ||||||||||||
| Red blood cell™Quantity | 2 | ||||||||||||
| Runtime Chart | |||||||||||||
|
Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output. |
||||||||||||
APC SURT10000XLI Surge Protection and Filtering
| Filter | Multi-stage noise filter, according to UL1449 standard |
APC SURT10000XLI Physical Indicators
| High | 432.00 mm |
| Wide | 263.00 mm |
| deep | 723.00 mm |
| Equipment installation effective height | 6U |
| Net weight | 110.91 KG |
| Transport weight | 129.09 KG |
| Transportation height | 552.00 mm |
| Transport width | 597.00 mm |
| Transport length | 991.00 mm |
| Colour | Black |
| Quantity of products on each transport pallet | 1.00 |
APC SURT10000XLI Environment
| Operating environment | 0 - 40 °C |
| Operating relative humidity | 0 - 95% |
| Operating height | 0-3000 m |
| Storage temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95% |
| Storage height | 0-15000 m |
| Online running heat dissipation | 2216.00 BTU/hr |
| Audible noise 1 m from equipment surface | 55.00 dBA |
APC SURT10000XLI compliance
| Management body certification | C- Tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE |
| Compliance with environmental requirements | RoHS 7b Exemption, China RoHS |
| Standard warranty | Repair or replacement within 2 years |
