APC
APC SURT3000UXICH
Single-in, single-out online high-frequency 3K long machine can issue VAT invoices by postage in most areas.
- Model
- APC SURT3000UXICH
- Capacity / Power
- 3KVA / 2.1KW
- Dimensions mm
- 432*130*673
¥8,151.53View details
APC

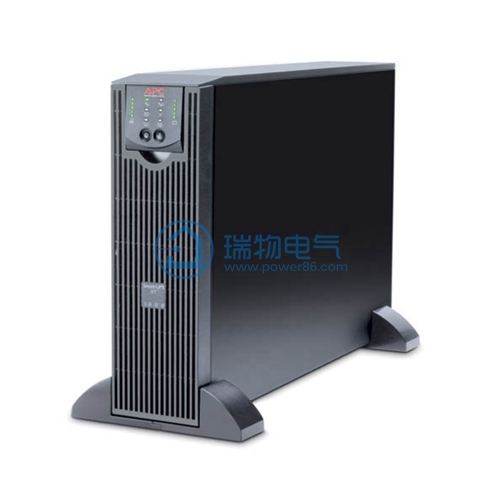

APC SURT3000XLICH
Single-in, single-out online high-frequency machine 3K standard machine can issue VAT invoices by postage in most areas.
¥8,229.94
- Rated power
- 2.1KW (kW)
- Rated capacity
- 3KVA (kVA)
- Input / output
- Single in and single out (220V:220V)
- Built-in battery voltage
- (standard machine) built-in battery 192V (DC)
- Net weight
- 54.55kg (kg)
- Gross weight
- 60.00kg (kg)
- Dimensions (L×W×H)
- 432*130*673mm (mm) U
Ratings
View on mobileDetailed specifications:
APC SURT3000XLI output
| Output power Capacity | 2100 Wattage/3000 VA | |||
| Maximum Configurable Power | 2100 Wattage/3000 VA | |||
| Rated output voltage | 230V | |||
| Adjustable range of output voltage | Can be set to 220, 230 or 240 output voltage | |||
| Full load efficiency | 91.0% | |||
| Output voltage distortion | Less than 3% | |||
| Output frequency (synchronized with main frequency) | 50/60Hz /- 3 Hz user adjustable/- 0.1 | |||
| Other output voltages | 220,240 | |||
| crest factor | 3 : 1 | |||
| Topology | double conversion online | |||
| Waveform Type | Sine wave | |||
| Output Connections |
|
|||
| Bypass | Internal bypass (automatic manual) |
APC SURT3000XLI Input
| Rated input voltage | 230V | |||
| Input frequency | 50/60Hz /- 5 Hz (automatic adaptation) | |||
| Input terminal type |
|
|||
| Input line length | 2.44 meters | |||
| Operating voltage range | 160 - 280V | |||
| Adjustable Input Voltage Range | 100 - 280V | |||
| Other input voltages | 230,240 |
APC SURT3000XLI Communications and Management
| Interface Port | DB-9 RS-232, smart slot |
| Number of smart slots available | 1 |
| Control Panel | LED status display with load and battery bar graph and "online", "battery on", "replace battery", "overload" and "bypass" indicators. |
| Emergency Shutdown | Yes |
| audible alarm | Alarm when mains power failure: special low battery alarm overload continuous tone alarm |
APC SURT3000XLI Battery and Runtime
| Battery Model | Maintenance-free sealed lead-acid battery (suspended electrolyte): leak-proof | ||||||||||||
| Pre-installed battery | 2 | ||||||||||||
| Typical charging time | 2.50 hours | ||||||||||||
| Replaceable battery pack | RBC44 | ||||||||||||
| Red blood cell™Quantity | 1 | ||||||||||||
| Runtime Chart | |||||||||||||
|
Curve fit measured run time data. All measurements were carried out with a fully charged new battery, under typical environmental conditions and without power input and resistive load output. |
||||||||||||
APC SURT3000XLI Surge Protection and Filtering
| Surge suppression energy | 480 joules |
| Filter | Multi-stage noise filter, according to UL1449 standard |
APC SURT3000XLI Physical Indicators
| High | 432.00 mm |
| Wide | 130.00 mm |
| deep | 673.00 mm |
| Equipment installation effective height | 3U |
| Net weight | 54.55 KG |
| Transport weight | 63.64 KG |
| Transportation height | 347.00 mm |
| Transport width | 603.00 mm |
| Transport length | 980.00 mm |
| Colour | Black |
| Quantity of products on each transport pallet | 6.00 |
APC SURT3000XLI Environment
| Operating environment | 0 - 40 °C |
| Operating relative humidity | 0 - 95% |
| Operating height | 0-3000 m |
| Storage temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95% |
| Storage height | 0-15000 m |
| Online running heat dissipation | 655.00 BTU/hr |
| Audible noise 1 m from equipment surface | 55.00 dBA |
APC SURT3000XLI compliance
| Management body certification | BSMI,C-tick,CE,CSA,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,JEON,UL 1778,VCCI,VDE |
| Standard warranty | Repair or replacement within 2 years |
